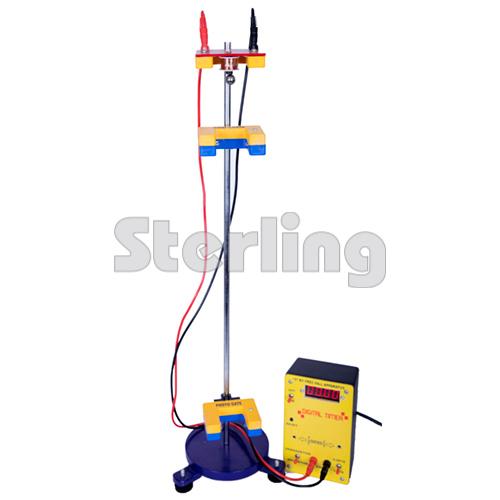

“G” BY FREE FALL APPARATUS ADVANCED

The “G” by Free Fall Apparatus – Advanced is designed for accurate determination of the acceleration due to gravity using the free-fall method. The apparatus incorporates an electromagnetic solenoid release unit that holds and promptly releases a metal sphere when the power to the electromagnet is switched off.

A gate switch unit is positioned below the release mechanism. It consists of a hinged steel plate held against an adjustable electrical contact by a small magnet. When the falling sphere strikes the plate, it moves immediately and operates the contact, providing a precise stopping signal to the electronic timer.

Both the solenoid unit and gate switch unit are mounted on adjustable plastic supports that can be securely clamped to a 12 mm diameter retort stand rod, allowing convenient adjustment of the falling height. The system is supplied with metal spheres, retort stand and a digital timer for recording the time of fall and calculating the value of g.

Specifications:

• Model: Advanced
• Experiment: Determination of acceleration due to gravity (g)
• Method: Free-fall method
• Release Mechanism: Electromagnetic solenoid
• Detection Mechanism: Hinged gate switch with adjustable contact
• Mounting: Adjustable units with clamps
• Retort Stand Rod Compatibility: Approx. 12 mm diameter
• Timer: Digital electronic timer
• Projectile: Metal spheres
• Construction: Durable components designed for repeated laboratory use
• Height Adjustment: Adjustable for different experimental conditions
• Application: Physics practical experiments and demonstrations
• Suitable For: Schools, colleges, universities and educational physics laboratories

Principle: The apparatus measures the time taken by a sphere to fall through a known height, allowing the acceleration due to gravity to be determined experimentally.
