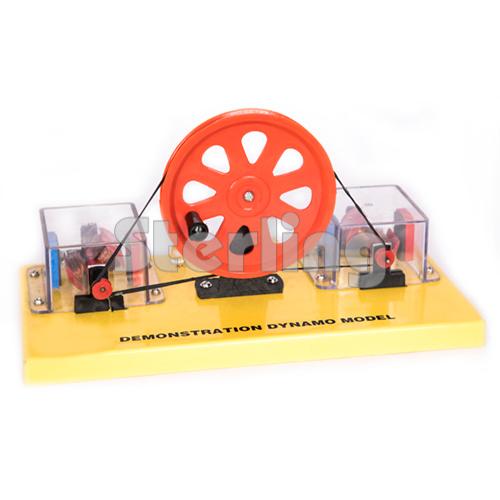

DEMONSTRATION DYNAMO WORKING MODEL

The Demonstration Dynamo Working Model is designed to provide a clear and practical demonstration of the conversion of mechanical energy into electrical energy through electromagnetic induction. The model incorporates AC/DC dynamo units mounted on a common base, with the working mechanism visible through transparent acrylic protective casings.

A centrally positioned hand-driven wheel operates the dynamo mechanism, allowing students to observe the generation of electrical output. The generated electrical energy is indicated through illuminated LED bulbs, making the working principle easy to understand during classroom demonstrations.

Specifications:

• Model: Demonstration Dynamo Working Model
• Type: Hand Driven
• Output: AC / DC
• Drive Mechanism: Central hand-operated wheel
• Dynamo Units: AC/DC dynamo arrangement
• Casing: Transparent acrylic casing for clear visibility of working parts
• Indicator: Illuminated LED bulb
• Base: Sturdy common base
• Base Size: Approx. 300 × 150 mm
• Principle Demonstrated: Electromagnetic induction and generation of electrical energy
• Application: Physics classroom demonstrations and practical teaching
• Suitable For: Schools, colleges and educational physics laboratories
