ATWOOD’S MACHINE

The Atwood's Machine is a precision educational apparatus used for studying the fundamental principles of Newtonian mechanics. It provides a simple arrangement for investigating the relationship between applied force, mass and acceleration.

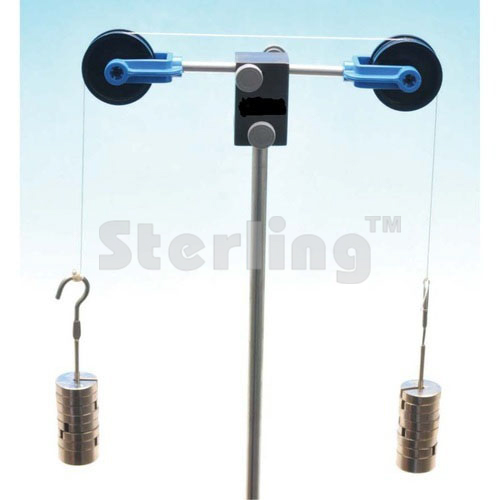

The apparatus consists of a vertical support rod with a sturdy mounting arrangement and a pulley assembly mounted at the top. A lightweight cord passes over the pulleys, with a mass hanger and slotted weights suspended at each end. The masses can be arranged in equal or unequal combinations to demonstrate equilibrium and accelerated motion.

With equal masses on both sides, the system can be used to demonstrate balanced forces and equilibrium. By adding a small additional mass to one side, students can observe the resulting acceleration and investigate the relationship between net force, total mass and acceleration.

Specifications:

• Item: Atwood's Machine
• Type: Mechanics / Dynamics Demonstration Apparatus
• Support: Vertical metal support rod
• Pulley System: Two low-friction pulleys
• Cord: Flexible connecting cord
• Mass System: Two suspended mass sets
• Weights: Slotted weights for balancing and unbalancing the system
• Mounting: Stable mounting/base arrangement
• Operation: Manual loading and adjustment of masses
• Experiments: Balanced forces, unbalanced forces and acceleration
• Principles Demonstrated: Newton's laws of motion, force, mass and acceleration
• Application: Mechanics and dynamics experiments
• Suitable For: Schools, colleges, universities and physics laboratories

Educational Use:
The apparatus enables students to experimentally study how an unbalanced force produces acceleration and how acceleration varies with the applied force and total mass of the system.
