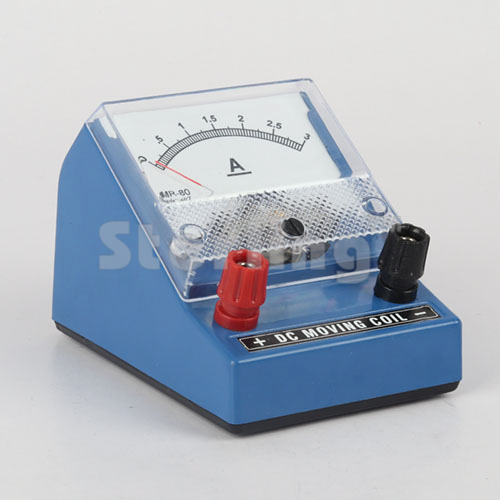

AMMETER DUAL SCALE (MOVING COIL)

Name: AMMETER DUAL SCALE (MOVING COIL)
Brand: SterLab
SKU: PHY-00006

Product code: PHY-00006

Ammeter – Dual Scale (Moving Coil) is a precision analog instrument designed for DC current measurement. It features dual graduated scales, colour-coded terminals, a protective dust-resistant casing and zero-adjustment facility, making it suitable for accurate electrical measurements in educational laboratories.

Item codeSize / descriptionQty

PHY-00006/1 0–1 A

PHY-00006/2 0–1.5 A

PHY-00006/3 0–3 A

PHY-00006/4 0–5 A

PHY-00006/5 0–10 A

Enter the quantity next to each size you need (0 = not needed), then add them all in one go.

Ask on WhatsApp Product PDF

Made in our Ambala facility
Export packing & documents
Custom sizes on request

Physics catalogueFull specifications and item codes Download

Description

The Ammeter – Dual Scale (Moving Coil) is a robust analog measuring instrument designed for measuring direct current (DC) in electrical and physics laboratory circuits. It operates on the Permanent Magnet Moving Coil (PMMC) principle, where the deflection of the pointer is proportional to the current passing through the instrument.

The instrument features two graduated measuring scales, allowing the same meter to be used for different current ranges without requiring a separate ammeter. The clear, easy-to-read dial provides convenient measurement during practical experiments.

The meter is housed in a durable, dust-resistant protective casing and is provided with colour-coded terminals for easy and safe circuit connections. A zero-adjustment mechanism allows the pointer to be correctly positioned before taking measurements.

Specifications:

Item: Ammeter – Dual Scale
Type: Moving Coil / PMMC Ammeter
Measurement: Direct Current (DC)
Display: Analog pointer and graduated dual scale
Scale: Dual-range graduated dial
Terminals: Colour-coded electrical terminals
Zero Adjustment: Provided
Casing: Dust-resistant protective housing
Operation: DC current measurement
Construction: Sturdy laboratory-grade body
Applications: DC circuit measurements, Ohm's Law, series/parallel circuit experiments and electrical demonstrations
Suitable For: Schools, colleges, universities and physics/electrical laboratories
